Product Description

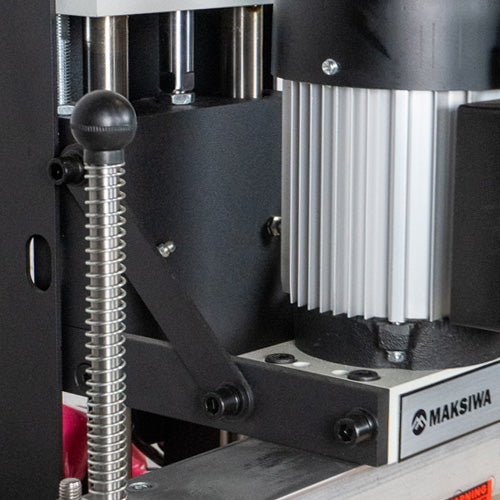

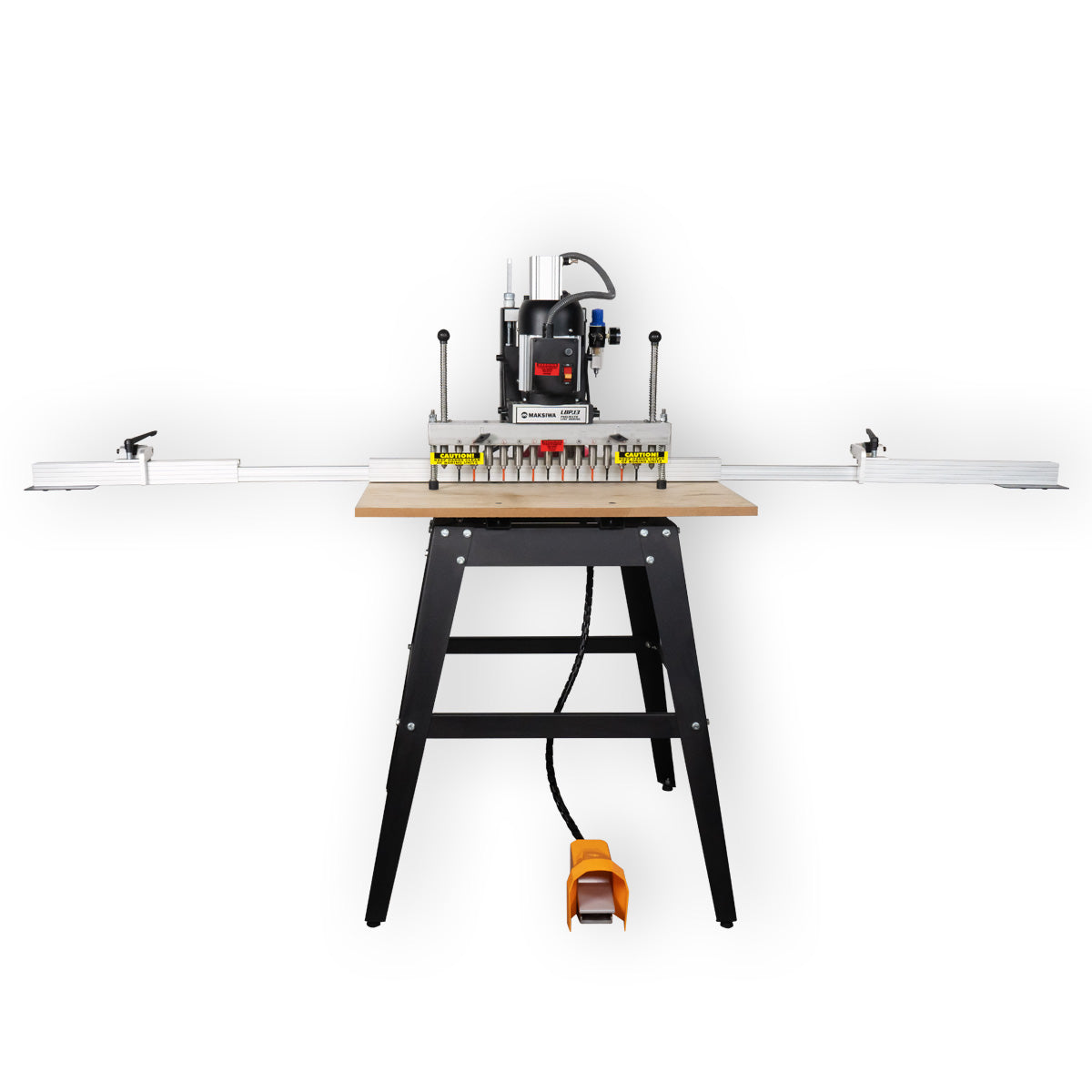

All the same great features of the Manual version with the addition of the pneumatic system, the LBP.13 has a lubricated aluminum head, heat treated steel gears, 1 HP motor, 13 stainless-steel spindles, extendable fence guide up to 89” and 2 fence stops.

Sophisticated features and details.

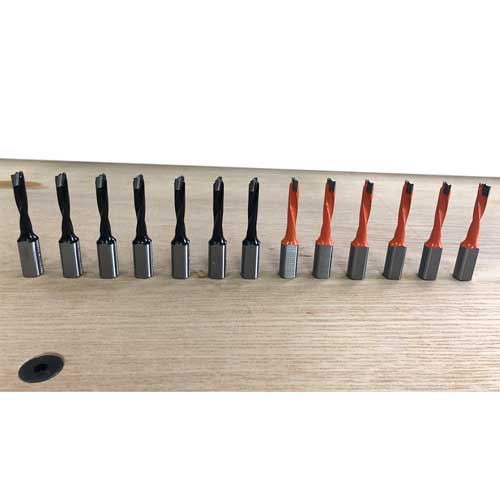

DRILL BITS

Drill bits set included.

INDEXING PINS

Step and repeat indexing pins (left and right).

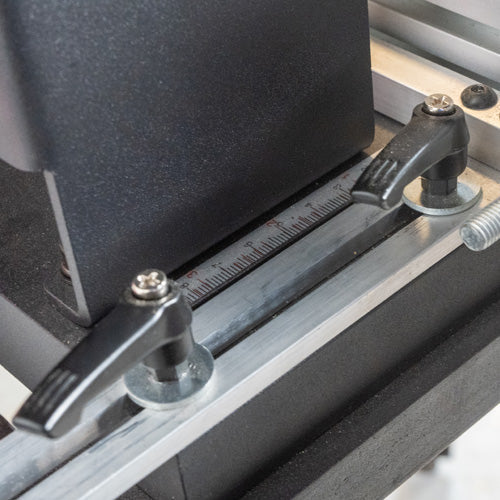

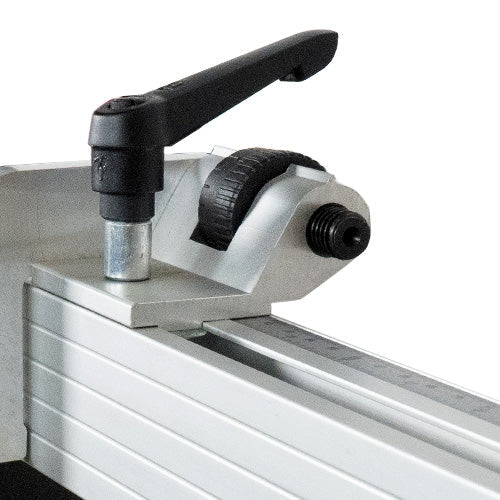

ADJUSTABLE X & Y AXIS FLIP STOPS

Adjustable X & Y axis flip stops.

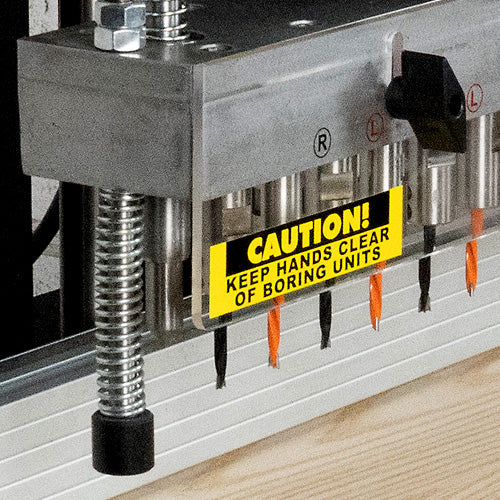

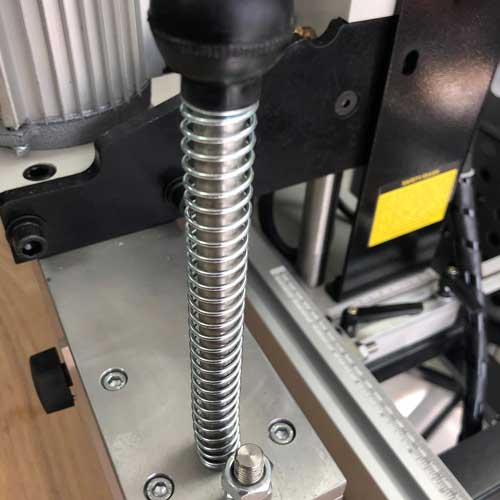

SPRING LOADED HOLD DOWNS

Perfect to fix the workpieces.



Technical Information LBP.13
Motor 1HP 110V 1 Phase 10A 60 HZ
Prewired 110 V, Single – Phase – 10 A / 5 A
Table Size 31"x 15 1/2"
Spindle Speed 3.450 RPM
Fence Stops 2
Expandable Fence Guide Max 89"

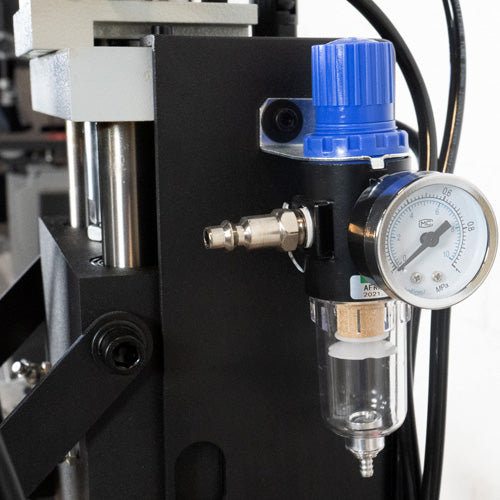

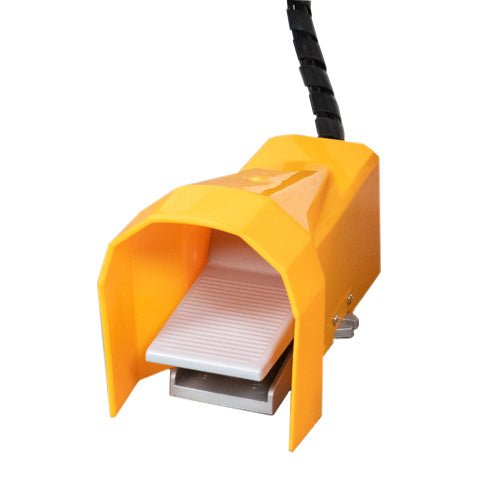

Operation Pneumatic
Floor to Table Height 34"
Max. Depth of Stroke 2.5"
Length of Fence 61.5-5-91.5"
Number of Spindles 13 (6 Left and 7 Right)
Distance Between Spindle Centers 32 mm
Shipping Weight 155 Lbs
Warranty 2 years
