Product Description

Product Description

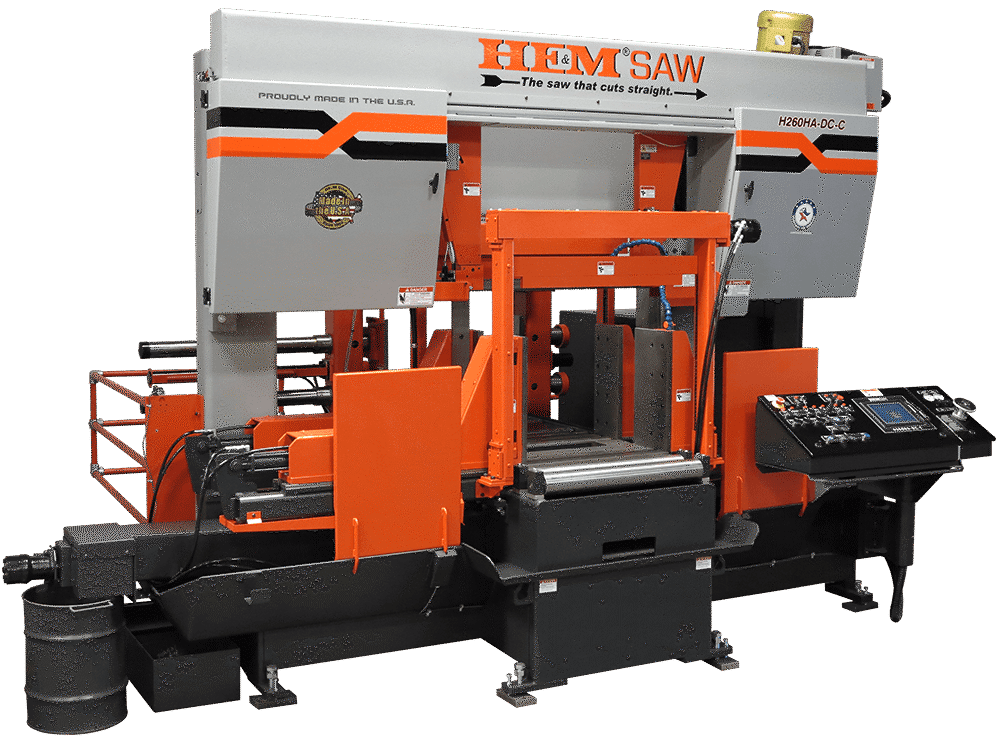

The H260M-DC operates using touch screen mounted in a swing-away console. The patented Cut Watcher® System and Chip Auger are standard features. A full-stroking main vise positions automatically with the powered guide arm, patented Cut Watcher® system and Chip Auger are standard and many optional features are available.

Technical Highlights

  • Main Capacity: 0-26" W x 0-26" H
  • Bar-feed: N/A
  • Blade: 22' 0" L x 2" H x .063"
  • Motor: 15 HP
  • Hydraulic Motor: 10 HP
  • Operation: Semi-Automatic
Rectangular Capacity 0-26" W x 0-26" H
Square Capacity 0-26" (Square)
Round Capacity 0-26" (Diameter)
Bar-feed N/A
Motor 15 HP
Hydraulic Motor 10 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 22' 0" L x 2" H x .063"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut?

No



  • Swing-Away Control Console w/ 7" Touch Screen
  • 36" Roller Load Table w/ Filler Plates
  • 24" Solid Discharge Table
  • Vise - Full Stroking Main
  • Adjustable Clamping Force
  • Carbide Blade Guides
  • Lead In/Lead Out Roller Guides
  • Passive "Cut Watcher®" System
  • Guide Arm Moves in Conjunction w/ Main Vise
  • Variable Blade Speed w/ Readout on Touch Screen
  • Powered Blade Tension
  • Adjustable Feed Rate
  • Adjustable Cutting Pressure
  • Chip/Swarf Removal System - Chip Auger
  • Coolant System - Flood w/ Wash-Down Hose
  • Broken Blade Function
  • Two-Hand Operation Controls
  • Automatic Blade Idle
  • Blade Change Interlock
  • 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
