Product Description

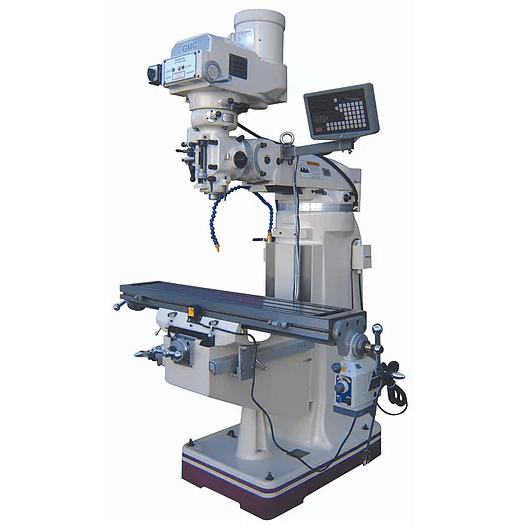

GMC Vertical Knee Type Milling Machine - GMM-949VPKG


Our knee type milling machines are constructed of high grade casting. Comes equipped with a 3HP AC spindle motor, and operates in 220 volts.

Features

  • Taiwan Mill
  • “Meehanite” Casting
  • “Turcite B” Coating on X/Y ways
  • ISO 9001 certified
  • GMM-949V has variable spindle speeds from 70-4,300 rpm
  • Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion )
  • Heavy Duty “Meehanite” casting
  • Hardened & ground dovetail guideways
  • Hand scraped precision ways
  • Hardened & ground table and ground table T-slots
  • Precision ground ACME Leadscrews
  • Chromed ground quill ( spindle )
  • Chromed dials
  • Adjustable ways
  • Hand brake on mill head
  • Tilting & rotating head
  • Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
  • One shot lube system
  • front and rear rubber chip guards
  • (1) manual draw bar
  • Tool box with tools
  • Power source 220V , 3 phase
  • One year industrial warranty for parts

Standard Included Equipment

  • SINO DRO, X Y Axis (installed)
  • Table Power Feed X Axis, (installed)
  • Way covers
  • One draw bar
  • One shot lube
  • Tool box
Specification

Table Size

Table Load Capacity

9" x 49"

650 lbs.

X Axis Travel

X Travel with Power Feed

Y Axis Travel

Z Axis Travel

35 1/2"

31 1/2"

12"

17"

Spindle Taper Type

AC Spindle Motor

Spindle Speeds



Quill (spindle) diameter

R8

3 HP

70-4,300 RPM (variable speeds)



3 3/8"

Quill (spindle) travel 5"
Ram Travel 12"
Table T-Slot Size 5/8" x 3 slots

Head Swivel, R/H, L/H

Net weight

90 degree

2,650 lbs.
