Product Description

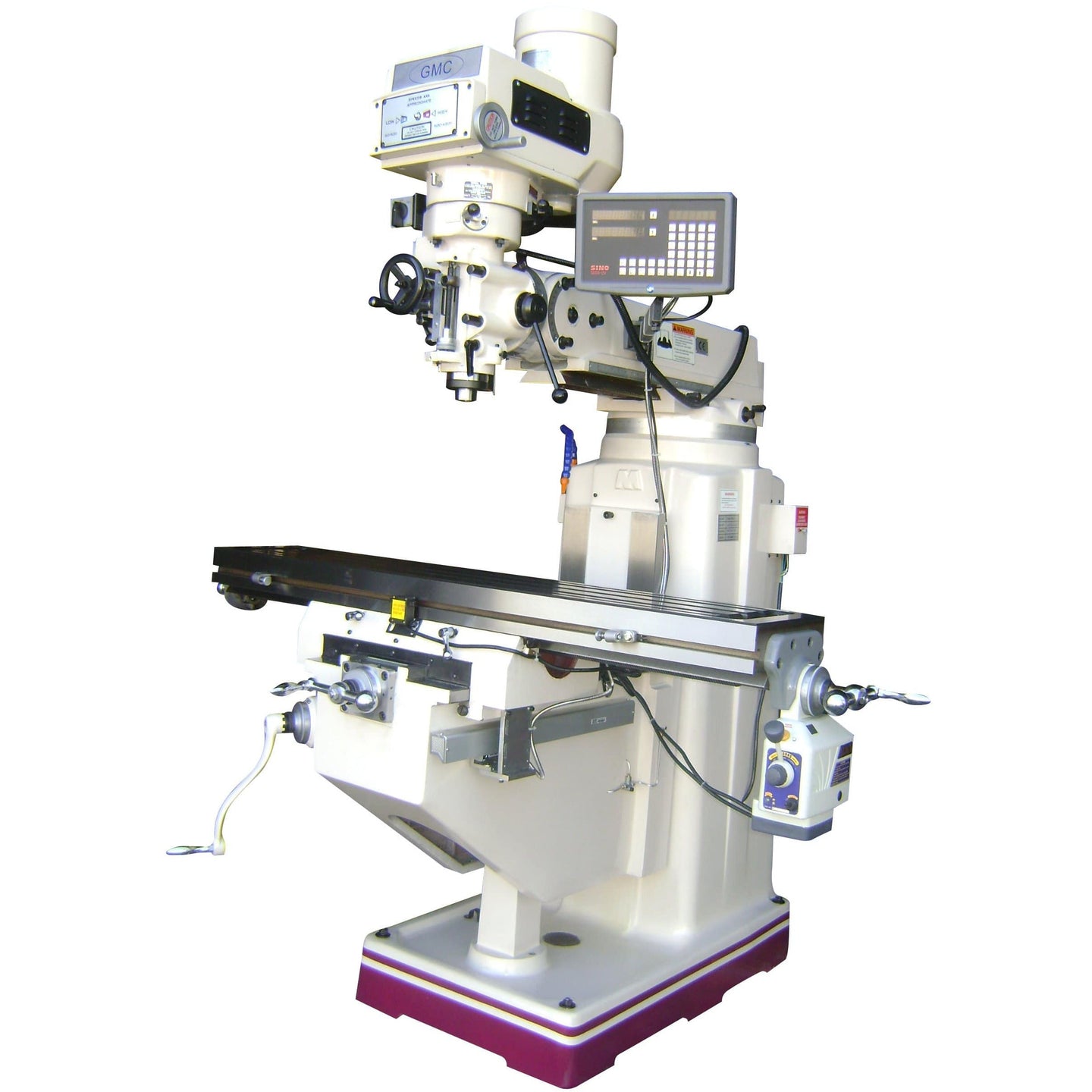

GMC Vertical Knee Type Milling Machine - GMM-1054VPKG


Our knee type milling machines are constructed of high grade casting. Comes equipped with a 3HP AC spindle motor, and operates in 220 volts.

Features

  • Taiwan mill
  • “Meehanite” casting
  • Turcite “B” coating on X/Y ways like CNC mills
  • ISO 9001 certified
  • Mechanical variable spindle speeds from 70-4,300 rpm
  • Heavy duty 3 HP AC spindle motor, 3 phase
  • Heavy Duty high grade castings
  • Hardened & ground ways, square ways on knee and column
  • Hardened & ground table and Ground table T-slots
  • Precision ground ACME Leadscrews
  • Chromed ground quill ( spindle )
  • Chromed dials
  • Adjustable ways
  • Hand brake on mill head
  • Tilting & rotating head
  • Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
  • One shot lube system
  • front and rear rubber chip guards, and (1) manual draw bar
  • Tool box
  • Power source 220V OR 440V , 3 phase
  • One year industrial warranty for parts

Standard Included Equipment

  • SINO DRO (installed)
  • Table power feed X Axis
  • One shot lube
  • Draw bar
  • Rubber way covers
  • Tool box
Specification

Table Size

Table Load Capacity

10" x 54"

750 lbs.

X Axis Travel

X Travel with Power Feed

Y Axis Travel

Z Axis Travel

Spindle Taper Type

AC Spindle Motor

Variable Spindle Speeds

36 1/2"

33 1/2"

16"

16"

R8

3 HP

70-4,300 RPM

Quill (spindle) Diameter 3 3/8"
Quill (spindle) Travel 5"

Ram Travel

Table T-Slot Size

Head Swivel, R/H, L/H

18"

5/8"  x 3 slots

90 degree

Net Weight 3,250 lbs.
