Product Description

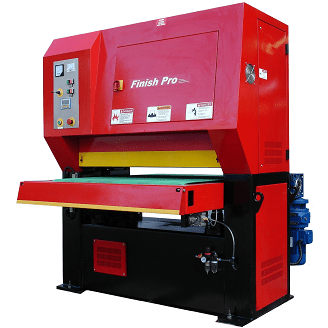

GMC Finish Pro Metal Wide Belt Sander - 52" x 85" Belt - FP-5285


Features

  • Abrasive belt size: 52” x 86”
  • 10” diameter heavy duty drum for perfect graining
  • 6-1/8” wide opening for max. workpiece thickness 6”
  • Motorized Table Lift with LED display
  • Variable Speed Conveyor
  • Conveyor Forward & Reverse
  • Belt Safety Over travel Switches
  • Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
  • Re-adjust the tracking system when running extremely out of parallel belts

  • 4-Jackscrew Table Support
  • Double Infeed & Outfeed Pinch Rolls with protective guards
  • Conveyor Belt Tracking System
  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
  • 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

  • Table Height Digital Readout
  • Load Meter indicates percentage of full motor loads
  • Belt change door electrically interlocked for safety purpose
  • Air tensioning of belt for accurate tensioning & compensation of belt stretch
  • Quick release sanding head support for fast belt change
  • Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
  • Emergency stops from almost any point
  • Noise level bellows 82 dba
  • Operation manual, control tags, danger signs, and warning labels in English on machine
  • 208/230V, 3-Phase (440/460V is available)
  • One year Industrial Warranty for parts.

Note:

  • Prices are for 208-230 VOLTS
  • Total amps 45 @ 230/3/60
  • COMPRESSED AIR REQUIRED:  2 CFM @ 90 PSI

Caution

CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.


    Specification
    Max. Part Width 52"
    Abrasive Belt Size 52" x 86"
    Contact Roller Size 10" Dia.
    Passline Height 31" - 37"
    Max. Thickness Capacity 6 1/8"
    Conveyor Drive Speeds 8 - 40 FPM
    Infeed Conveyor Length 20"
    Dust Colector Capacity 2,800 CFM
    Main Motor 30HP, 230V / 460V, 3PH
    Conveyor Motor 3HP, 230V / 460V, 3PH
    Table Lifting Motor 3HP, 230V / 460V, 3PH
    Net Weight, Approx.  6,650 LBS
    Machine Dimensions LxWxH 89" x 98" x 93"



    Optional Accessories
    Model WDC-FP52 Wet Dust Collector # WDC-FP52, 5HP, 2,100CFM $7,900.00
    Heavy Duty Ducting Package # HDDP-5285 $950.00
    Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) $POR
    Shipping (approx) $1,1500.00
