Product Description

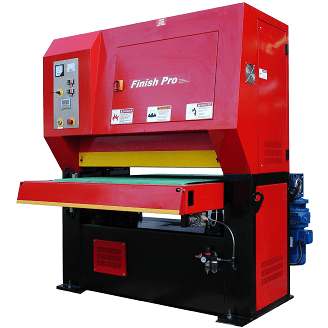

 GMC Finish Pro Metal Wide Belt Sander - 25" x 60" Belt - FP-2560

Features

  • Motorized Table Lift, with digital readout
  • Variable Speed Conveyor
  • Conveyor Forward & Reverse
  • Belt Safety Overtravel Switches
  • Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts
  • 4-Jackscrew Table Support
  • Double Infeed & Outfeed Pinch Rolls with protective guards
  • Conveyor Belt Tracking System
  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
  • 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
  • Table Height Digital Readout
  • Load Meter indicates percentage of full motor loads
  • Belt change door electrically interlocked for safety purpose
  • Air tensioning of belt for accurate tensioning & compensation of belt stretch
  • Quick release sanding head support for fast belt change
  • Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
  • Emergency stops from almost any point
  • Noise level bellows 80 dba
  • Operation manual, control tags, danger signs, and warning labels in English on machine
  • 208/230, 3-Phase
  • One year Industrial Warranty for parts
  • We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void

Note:

  • Prices are for 208-230 VOLTS
  • Total amps 45 @ 230/3/60
  • COMPRESSED AIR REQUIRED:  2 CFM @ 90 PSI

Caution

CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.


    Specification
    Max. Part Width 24"
    Abrasive Belt Size 25" x 60"
    Contact Roller Size 8" Dia.
    Passline Height 31" - 37"
    Max. Thickness Capacity 6 1/8"
    Conveyor Drive Speeds 8 - 40 FPM
    Infeed Conveyor Length 20"
    Dust Colector Capacity 1,100 CFM
    Main Motor 10HP, 230V, 3PH
    Conveyor Motor 1HP, 230V, 3PH
    Table Lifting Motor 1HP, 230V, 3PH
    Net Weight, Approx.  2,950 LBS
    Machine Dimensions LxWxH 55" x 63" x 69"

    Optional Accessories
    Model WDC-FP40 Wet Dust Collector # WDC-FP40, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel) $7,900.00
    Heavy Duty Ducting Package # HDDP-2560 $750.00
    Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) $450.00
    Shipping (approx) $1,200.00
